[Volatility] Volatility 볼라틸리티 3 설치

Volatility는 메모리 덤프에서 디지털 아티팩트를 추출할 수 있는 도구입니다. 다양한 메모리 덤프 형식을 지원하며, 메모리 덤프를 분석하여 맬웨어, 루트킷 및 기타 의심스러운 활동을 탐지하는 데 사용되는 강력한 메모리 포렌식 프레임워크입니다. 이번 글에서는 Python을 사용하여 Windows에 Volatility 3를 설치하는 단계별 과정을 설명합니다.



◎ Volatility 3 Wheel 파일 다운로드

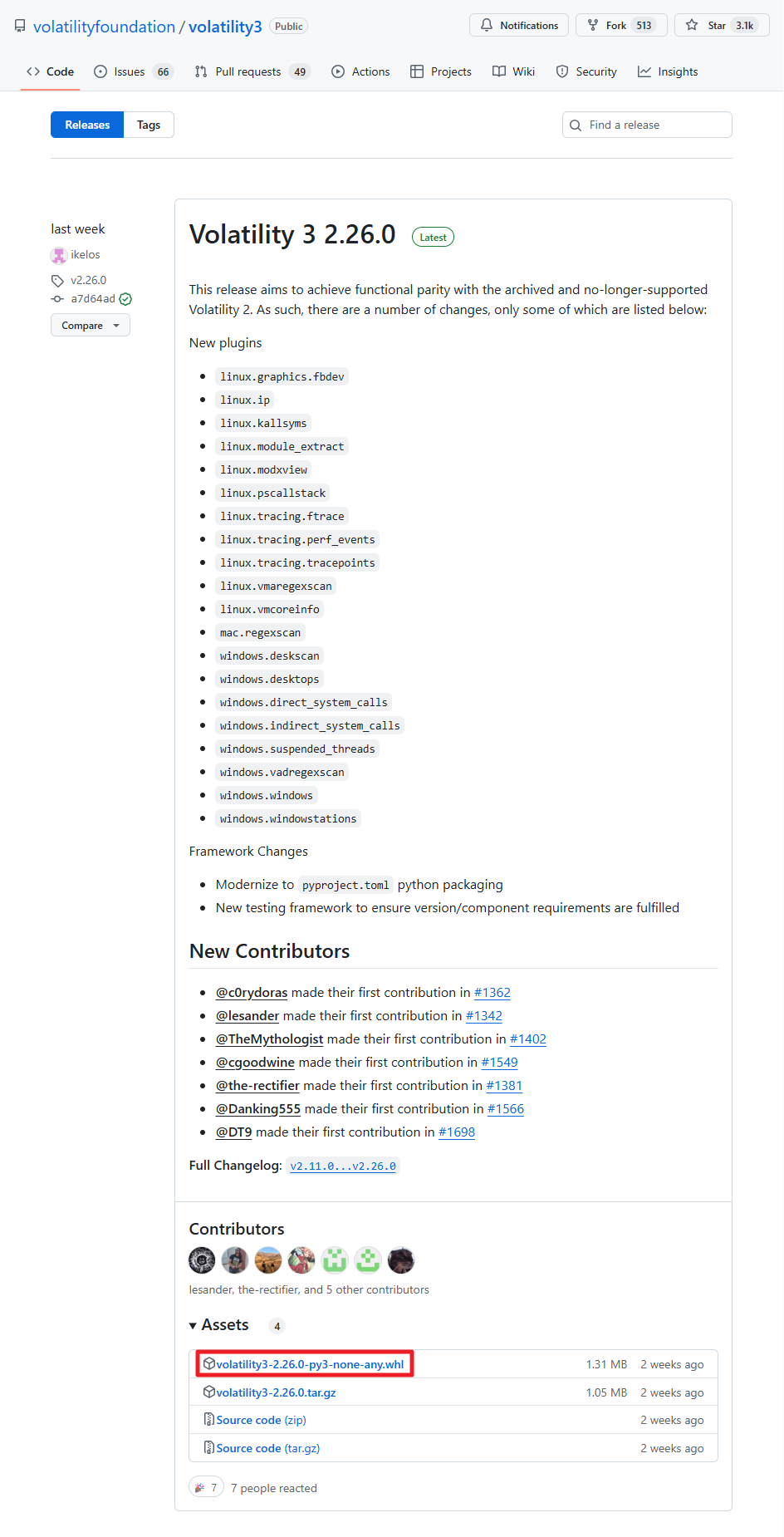

 - Volatility 3 Github에서  Volatility 3를 설치하기 위한 whl 파일을 다운로드하세요.



[윈도우 내 설치]

◎ Python 3 설치

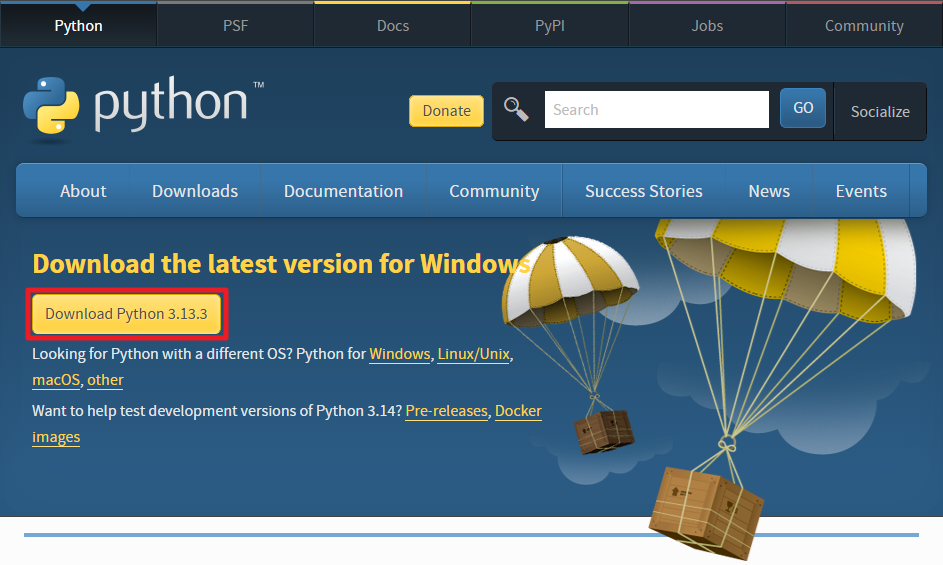

 - 공식 Python 웹사이트 에서 Python 3을 다운로드하여 설치하세요.

※ 설치 과정에서 Python을 PATH에 추가해야 합니다.

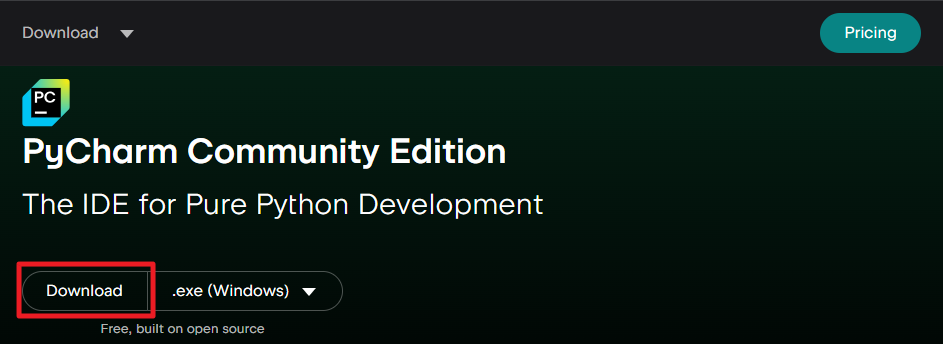

 - 또는 PyCharm Community Edition 무료버전을 다운로드하여 설치하세요.



◎ Pip를 사용하여 Volatility 3 설치

 - 관리자 권한으로 cmd를 열고 .whl 파일을 다운로드한 디렉터리로 이동하세요. 그런 다음 명령을 실행하여 Volatility 3를 설치하세요.

C:\Users\User\Downloads> pip install volatility3-2.26.0-py3-none-any.whl



 - 또는 PyCharm Community Edition 콘솔에서 다음 명령을 실행하여 Volatility 3를 설치하세요.

(.venv) PS C:\Users\user\Downloads> pip install .\volatility3-2.26.0-py3-none-any.whl Processing c:\users\user\downloads\volatility3-2.26.0-py3-none-any.whl Collecting pefile>=2024.8.26 (from volatility3==2.26.0)   Downloading pefile-2024.8.26-py3-none-any.whl.metadata (1.4 kB) Downloading pefile-2024.8.26-py3-none-any.whl (74 kB) Installing collected packages: pefile, volatility3 Successfully installed pefile-2024.8.26 volatility3-2.26.0 [notice] A new release of pip is available: 25.0.1 -> 25.1.1 [notice] To update, run: python.exe -m pip install --upgrade pip



◎ 설치 확인

 - Volatility 3가 올바르게 설치되었는지 확인하려면 다음 명령을 실행하세요.

C:\Users\User\Downloads> vol -h



또는 PyCharm Community Edition 콘솔에서 다음 명령을 실행하세요.

(.venv) PS C:\Users\user\Downloads> vol -h

설치가 성공적으로 완료되면 Volatility 3 도움말 메뉴가 표시됩니다.

(.venv) PS C:\Users\user\Downloads> vol -h Volatility 3 Framework 2.26.0 usage: vol.exe [-h] [-c CONFIG] [--parallelism [{processes,threads,off}]] [-e EXTEND] [-p PLUGIN_DIRS] [-s SYMBOL_DIRS] [-v] [-l LOG] [-o OUTPUT_DIR] [-q]                [-r RENDERER] [-f FILE] [--write-config] [--save-config SAVE_CONFIG] [--clear-cache] [--cache-path CACHE_PATH] [--offline | -u URL]                [--filters FILTERS] [--hide-columns [HIDE_COLUMNS ...]] [--single-location SINGLE_LOCATION] [--stackers [STACKERS ...]]                [--single-swap-locations [SINGLE_SWAP_LOCATIONS ...]]                PLUGIN ... An open-source memory forensics framework options:   -h, --help            Show this help message and exit, for specific plugin options use 'vol.exe <pluginname> --help'   -c, --config CONFIG   Load the configuration from a json file   --parallelism [{processes,threads,off}]                         Enables parallelism (defaults to off if no argument given)   -e, --extend EXTEND   Extend the configuration with a new (or changed) setting   -p, --plugin-dirs PLUGIN_DIRS                         Semi-colon separated list of paths to find plugins   -s, --symbol-dirs SYMBOL_DIRS                         Semi-colon separated list of paths to find symbols   -v, --verbosity       Increase output verbosity   -l, --log LOG         Log output to a file as well as the console   -o, --output-dir OUTPUT_DIR                         Directory in which to output any generated files   -q, --quiet           Remove progress feedback   -r, --renderer RENDERER                         Determines how to render the output (quick, none, csv, pretty, json, jsonl)   -f, --file FILE       Shorthand for --single-location=file:// if single-location is not defined   --write-config        Write configuration JSON file out to config.json   --save-config SAVE_CONFIG                         Save configuration JSON file to a file   --clear-cache         Clears out all short-term cached items   --cache-path CACHE_PATH                         Change the default path (C:\Users\user\AppData\Roaming\volatility3) used to store the cache   --offline             Do not search online for additional JSON files   -u, --remote-isf-url URL                         Search online for ISF json files   --filters FILTERS     List of filters to apply to the output (in the form of [+-]columname,pattern[!])   --hide-columns [HIDE_COLUMNS ...]                         Case-insensitive space separated list of prefixes to determine which columns to hide in the output if provided   --single-location SINGLE_LOCATION                         Specifies a base location on which to stack   --stackers [STACKERS ...]                         List of stackers   --single-swap-locations [SINGLE_SWAP_LOCATIONS ...]                         Specifies a list of swap layer URIs for use with single-location



[리눅스 내 설치]

◎ Python 3 관련 버전 확인 및 필요한 패키지 설치

 - 리눅스는 대부분 Pyrthon이 설치되어 있기 때문에 설치버전을 확인합니다.

# python --version 또는 # python -V 또는 # python3 --version 또는 # python3 -V



 - Python 가상환경을 만듭니다.

가상환경 생성용 패키지 설치 # apt install python버전-venv 가상환경 생성 # python3 -m venv venv-python3 가상환경 활성화 # source venv-python3/bin/activate 가상환경 비활성화 (venv-python3) # deactivate



 - 가상환경에 자주 필요한(Volatility 플러그인들이 요구하는) 의존성들을 설치합니다.

(venv-python3) # pip install yara-python pefile python-registry pycryptodome python-magic distorm3 capstone oletools jsonschema



  > 설치 항목 설명(대표적)

• yara-python : YARA 기반 플러그인(yarascan 등)
• pefile : PE 파일 파싱 (Windows 관련 플러그인)
• python-registry : 레지스트리 파싱 (lsadump, registry 관련)
• pycryptodome : 암호화 관련 (lsadump 등)
• python-magic : 파일/마임 감지 (mftscan 등)
• distorm3, capstone : 디스어셈블러(일부 플러그인)
• oletools, jsonschema : 기타 레지스트리/포맷 유틸리티



 - yara-python 등이 컴파일 에러로 실패하면 시스템 개발 패키지를 먼저 설치합니다.

# apt update # apt install -y build-essential python3-dev libssl-dev libffi-dev libmagic-dev libyara-dev



 - 가상환경 내 Volatility 3 설치

(venv-python3) # pip install volatility3-2.26.0-py3-none-any.whl



◎ 설치 확인

 - Volatility 3가 올바르게 설치되었는지 확인하려면 다음 명령을 실행하세요.

(venv-python3) # vol -h Volatility 3 Framework 2.26.0 usage: vol [-h] [-c CONFIG] [--parallelism [{processes,threads,off}]] [-e EXTEND] [-p PLUGIN_DIRS] [-s SYMBOL_DIRS] [-v]            [-l LOG] [-o OUTPUT_DIR] [-q] [-r RENDERER] [-f FILE] [--write-config] [--save-config SAVE_CONFIG] [--clear-cache]            [--cache-path CACHE_PATH] [--offline | -u URL] [--filters FILTERS] [--hide-columns [HIDE_COLUMNS ...]]            [--single-location SINGLE_LOCATION] [--stackers [STACKERS ...]]            [--single-swap-locations [SINGLE_SWAP_LOCATIONS ...]]            PLUGIN ... An open-source memory forensics framework options:   -h, --help            Show this help message and exit, for specific plugin options use 'vol <pluginname> --help'   -c, --config CONFIG   Load the configuration from a json file   --parallelism [{processes,threads,off}]                         Enables parallelism (defaults to off if no argument given)   -e, --extend EXTEND   Extend the configuration with a new (or changed) setting   -p, --plugin-dirs PLUGIN_DIRS                         Semi-colon separated list of paths to find plugins   -s, --symbol-dirs SYMBOL_DIRS                         Semi-colon separated list of paths to find symbols   -v, --verbosity       Increase output verbosity   -l, --log LOG         Log output to a file as well as the console   -o, --output-dir OUTPUT_DIR                         Directory in which to output any generated files   -q, --quiet           Remove progress feedback   -r, --renderer RENDERER                         Determines how to render the output (quick, none, csv, pretty, json, jsonl)   -f, --file FILE       Shorthand for --single-location=file:// if single-location is not defined   --write-config        Write configuration JSON file out to config.json   --save-config SAVE_CONFIG                         Save configuration JSON file to a file   --clear-cache         Clears out all short-term cached items   --cache-path CACHE_PATH                         Change the default path (/root/.cache/volatility3) used to store the cache   --offline             Do not search online for additional JSON files   -u, --remote-isf-url URL                         Search online for ISF json files   --filters FILTERS     List of filters to apply to the output (in the form of [+-]columname,pattern[!])   --hide-columns [HIDE_COLUMNS ...]                         Case-insensitive space separated list of prefixes to determine which columns to hide in the output if                         provided   --single-location SINGLE_LOCATION                         Specifies a base location on which to stack   --stackers [STACKERS ...]                         List of stackers   --single-swap-locations [SINGLE_SWAP_LOCATIONS ...]                         Specifies a list of swap layer URIs for use with single-location Plugins:   For plugin specific options, run 'vol <plugin> --help'   PLUGIN     banners.Banners     Attempts to identify potential linux banners in an image     configwriter.ConfigWriter                         Runs the automagics and both prints and outputs configuration in the output directory.     frameworkinfo.FrameworkInfo                         Plugin to list the various modular components of Volatility     isfinfo.IsfInfo     Determines information about the currently available ISF files, or a specific one     layerwriter.LayerWriter                         Runs the automagics and writes out the primary layer produced by the stacker.     linux.bash.Bash     Recovers bash command history from memory.     linux.boottime.Boottime                         Shows the time the system was started     linux.capabilities.Capabilities                         Lists process capabilities     linux.check_afinfo.Check_afinfo                         Verifies the operation function pointers of network protocols.     linux.check_creds.Check_creds                         Checks if any processes are sharing credential structures     linux.check_idt.Check_idt                         Checks if the IDT has been altered     linux.check_modules.Check_modules                         Compares module list to sysfs info, if available     linux.check_syscall.Check_syscall                         Check system call table for hooks.     linux.ebpf.EBPF     Enumerate eBPF programs     linux.elfs.Elfs     Lists all memory mapped ELF files for all processes.     linux.envars.Envars                         Lists processes with their environment variables     linux.graphics.fbdev.Fbdev                         Extract framebuffers from the fbdev graphics subsystem     linux.hidden_modules.Hidden_modules                         Carves memory to find hidden kernel modules     linux.iomem.IOMem   Generates an output similar to /proc/iomem on a running system.     linux.ip.Addr       Lists network interface information for all devices     linux.ip.Link       Lists information about network interfaces similar to `ip link show`     linux.kallsyms.Kallsyms                         Kallsyms symbols enumeration plugin.     linux.keyboard_notifiers.Keyboard_notifiers                         Parses the keyboard notifier call chain     linux.kmsg.Kmsg     Kernel log buffer reader     linux.kthreads.Kthreads                         Enumerates kthread functions     linux.library_list.LibraryList                         Enumerate libraries loaded into processes     linux.lsmod.Lsmod   Lists loaded kernel modules.     linux.lsof.Lsof     Lists open files for each processes.     linux.malfind.Malfind                         Lists process memory ranges that potentially contain injected code.     linux.module_extract.ModuleExtract                         Recreates an ELF file from a specific address in the kernel     linux.modxview.Modxview                         Centralize lsmod, check_modules and hidden_modules results to efficiently spot modules presence and                         taints.     linux.mountinfo.MountInfo                         Lists mount points on processes mount namespaces     linux.netfilter.Netfilter                         Lists Netfilter hooks.     linux.pagecache.Files                         Lists files from memory     linux.pagecache.InodePages                         Lists and recovers cached inode pages     linux.pagecache.RecoverFs                         Recovers the cached filesystem (directories, files, symlinks) into a compressed tarball.     linux.pidhashtable.PIDHashTable                         Enumerates processes through the PID hash table     linux.proc.Maps     Lists all memory maps for all processes.     linux.psaux.PsAux   Lists processes with their command line arguments     linux.pscallstack.PsCallStack                         Enumerates the call stack of each task     linux.pslist.PsList                         Lists the processes present in a particular linux memory image.     linux.psscan.PsScan                         Scans for processes present in a particular linux image.     linux.pstree.PsTree                         Plugin for listing processes in a tree based on their parent process ID.     linux.ptrace.Ptrace                         Enumerates ptrace's tracer and tracee tasks     linux.sockstat.Sockstat                         Lists all network connections for all processes.     linux.tracing.ftrace.CheckFtrace                         Detect ftrace hooking     linux.tracing.perf_events.PerfEvents                         Lists performance events for each process.     linux.tracing.tracepoints.CheckTracepoints                         Detect tracepoints hooking     linux.tty_check.tty_check                         Checks tty devices for hooks     linux.vmaregexscan.VmaRegExScan                         Scans all virtual memory areas for tasks using RegEx.     linux.vmayarascan.VmaYaraScan                         Scans all virtual memory areas for tasks using yara.     linux.vmcoreinfo.VMCoreInfo                         Enumerate VMCoreInfo tables     mac.bash.Bash       Recovers bash command history from memory.     mac.check_syscall.Check_syscall                         Check system call table for hooks.     mac.check_sysctl.Check_sysctl                         Check sysctl handlers for hooks.     mac.check_trap_table.Check_trap_table                         Check mach trap table for hooks.     mac.dmesg.Dmesg     Prints the kernel log buffer.     mac.ifconfig.Ifconfig                         Lists network interface information for all devices     mac.kauth_listeners.Kauth_listeners                         Lists kauth listeners and their status     mac.kauth_scopes.Kauth_scopes                         Lists kauth scopes and their status     mac.kevents.Kevents                         Lists event handlers registered by processes     mac.list_files.List_Files                         Lists all open file descriptors for all processes.     mac.lsmod.Lsmod     Lists loaded kernel modules.     mac.lsof.Lsof       Lists all open file descriptors for all processes.     mac.malfind.Malfind                         Lists process memory ranges that potentially contain injected code.     mac.mount.Mount     A module containing a collection of plugins that produce data typically found in Mac's mount command     mac.netstat.Netstat                         Lists all network connections for all processes.     mac.proc_maps.Maps  Lists process memory ranges that potentially contain injected code.     mac.psaux.Psaux     Recovers program command line arguments.     mac.pslist.PsList   Lists the processes present in a particular mac memory image.     mac.pstree.PsTree   Plugin for listing processes in a tree based on their parent process ID.     mac.socket_filters.Socket_filters                         Enumerates kernel socket filters.     mac.timers.Timers   Check for malicious kernel timers.     mac.trustedbsd.Trustedbsd                         Checks for malicious trustedbsd modules     mac.vfsevents.VFSevents                         Lists processes that are filtering file system events     regexscan.RegExScan                         Scans kernel memory using RegEx patterns.     timeliner.Timeliner                         Runs all relevant plugins that provide time related information and orders the results by time.     vmscan.Vmscan       Scans for Intel VT-d structues and generates VM volatility configs for them     windows.amcache.Amcache                         Extract information on executed applications from the AmCache (deprecated).     windows.bigpools.BigPools                         List big page pools.     windows.cachedump.Cachedump                         Dumps lsa secrets from memory (deprecated)     windows.callbacks.Callbacks                         Lists kernel callbacks and notification routines.     windows.cmdline.CmdLine                         Lists process command line arguments.     windows.cmdscan.CmdScan                         Looks for Windows Command History lists     windows.consoles.Consoles                         Looks for Windows console buffers     windows.crashinfo.Crashinfo                         Lists the information from a Windows crash dump.     windows.debugregisters.DebugRegisters     windows.deskscan.DeskScan                         Scans for the Desktop instances of each Window Station     windows.desktops.Desktops                         Enumerates the Desktop instances of each Window Station     windows.devicetree.DeviceTree                         Listing tree based on drivers and attached devices in a particular windows memory image.     windows.direct_system_calls.DirectSystemCalls                         Detects the Direct System Call technique used to bypass EDRs     windows.dlllist.DllList                         Lists the loaded DLLs in a particular windows memory image.     windows.driverirp.DriverIrp                         List IRPs for drivers in a particular windows memory image.     windows.drivermodule.DriverModule                         Determines if any loaded drivers were hidden by a rootkit     windows.driverscan.DriverScan                         Scans for drivers present in a particular windows memory image.     windows.dumpfiles.DumpFiles                         Dumps cached file contents from Windows memory samples.     windows.envars.Envars                         Display process environment variables     windows.filescan.FileScan                         Scans for file objects present in a particular windows memory image.     windows.getservicesids.GetServiceSIDs                         Lists process token sids.     windows.getsids.GetSIDs                         Print the SIDs owning each process     windows.handles.Handles                         Lists process open handles.     windows.hashdump.Hashdump                         Dumps user hashes from memory (deprecated)     windows.hollowprocesses.HollowProcesses                         Lists hollowed processes     windows.iat.IAT     Extract Import Address Table to list API (functions) used by a program contained in external libraries     windows.indirect_system_calls.IndirectSystemCalls     windows.info.Info   Show OS & kernel details of the memory sample being analyzed.     windows.joblinks.JobLinks                         Print process job link information     windows.kpcrs.KPCRs                         Print KPCR structure for each processor     windows.ldrmodules.LdrModules                         Lists the loaded modules in a particular windows memory image.     windows.lsadump.Lsadump                         Dumps lsa secrets from memory (deprecated)     windows.malfind.Malfind                         Lists process memory ranges that potentially contain injected code.     windows.mbrscan.MBRScan                         Scans for and parses potential Master Boot Records (MBRs)     windows.memmap.Memmap                         Prints the memory map     windows.mftscan.ADS                         Scans for Alternate Data Stream     windows.mftscan.MFTScan                         Scans for MFT FILE objects present in a particular windows memory image.     windows.mftscan.ResidentData                         Scans for MFT Records with Resident Data     windows.modscan.ModScan                         Scans for modules present in a particular windows memory image.     windows.modules.Modules                         Lists the loaded kernel modules.     windows.mutantscan.MutantScan                         Scans for mutexes present in a particular windows memory image.     windows.netscan.NetScan                         Scans for network objects present in a particular windows memory image.     windows.netstat.NetStat                         Traverses network tracking structures present in a particular windows memory image.     windows.orphan_kernel_threads.Threads                         Lists process threads     windows.pe_symbols.PESymbols                         Prints symbols in PE files in process and kernel memory     windows.pedump.PEDump                         Allows extracting PE Files from a specific address in a specific address space     windows.poolscanner.PoolScanner                         A generic pool scanner plugin.     windows.privileges.Privs                         Lists process token privileges     windows.processghosting.ProcessGhosting                         Lists processes whose DeletePending bit is set or whose FILE_OBJECT is set to 0 or Vads that are                         DeleteOnClose     windows.pslist.PsList                         Lists the processes present in a particular windows memory image.     windows.psscan.PsScan                         Scans for processes present in a particular windows memory image.     windows.pstree.PsTree                         Plugin for listing processes in a tree based on their parent process ID.     windows.psxview.PsXView                         Lists all processes found via four of the methods described in "The Art of Memory Forensics" which may                         help identify processes that are trying to hide themselves.     windows.registry.amcache.Amcache                         Extract information on executed applications from the AmCache.     windows.registry.cachedump.Cachedump                         Dumps lsa secrets from memory     windows.registry.certificates.Certificates                         Lists the certificates in the registry's Certificate Store.     windows.registry.getcellroutine.GetCellRoutine                         Reports registry hives with a hooked GetCellRoutine handler     windows.registry.hashdump.Hashdump                         Dumps user hashes from memory     windows.registry.hivelist.HiveList                         Lists the registry hives present in a particular memory image.     windows.registry.hivescan.HiveScan                         Scans for registry hives present in a particular windows memory image.     windows.registry.lsadump.Lsadump                         Dumps lsa secrets from memory     windows.registry.printkey.PrintKey                         Lists the registry keys under a hive or specific key value.     windows.registry.scheduled_tasks.ScheduledTasks                         Decodes scheduled task information from the Windows registry, including information about triggers,                         actions, run times, and creation times.     windows.registry.userassist.UserAssist                         Print userassist registry keys and information.     windows.scheduled_tasks.ScheduledTasks                         Decodes scheduled task information from the Windows registry, including information about triggers,                         actions, run times, and creation times (deprecated).     windows.sessions.Sessions                         lists Processes with Session information extracted from Environmental Variables     windows.shimcachemem.ShimcacheMem                         Reads Shimcache entries from the ahcache.sys AVL tree     windows.skeleton_key_check.Skeleton_Key_Check                         Looks for signs of Skeleton Key malware     windows.ssdt.SSDT   Lists the system call table.     windows.statistics.Statistics                         Lists statistics about the memory space.     windows.strings.Strings                         Reads output from the strings command and indicates which process(es) each string belongs to.     windows.suspended_threads.SuspendedThreads                         Enumerates suspended threads.     windows.suspicious_threads.SuspiciousThreads                         Lists suspicious userland process threads     windows.svcdiff.SvcDiff                         Compares services found through list walking versus scanning to find rootkits     windows.svclist.SvcList                         Lists services contained with the services.exe doubly linked list of services     windows.svcscan.SvcScan                         Scans for windows services.     windows.symlinkscan.SymlinkScan                         Scans for links present in a particular windows memory image.     windows.thrdscan.ThrdScan                         Scans for windows threads.     windows.threads.Threads                         Lists process threads     windows.timers.Timers                         Print kernel timers and associated module DPCs     windows.truecrypt.Passphrase                         TrueCrypt Cached Passphrase Finder     windows.unhooked_system_calls.unhooked_system_calls                         Looks for signs of Skeleton Key malware     windows.unloadedmodules.UnloadedModules                         Lists the unloaded kernel modules.     windows.vadinfo.VadInfo                         Lists process memory ranges.     windows.vadregexscan.VadRegExScan                         Scans all virtual memory areas for tasks using RegEx.     windows.vadwalk.VadWalk                         Walk the VAD tree.     windows.vadyarascan.VadYaraScan                         Scans all the Virtual Address Descriptor memory maps using yara.     windows.verinfo.VerInfo                         Lists version information from PE files.     windows.virtmap.VirtMap                         Lists virtual mapped sections.     windows.windows.Windows                         Enumerates the Windows of Desktop instances     windows.windowstations.WindowStations                         Scans for top level Windows Stations     yarascan.YaraScan   Scans kernel memory using yara rules (string or file).
